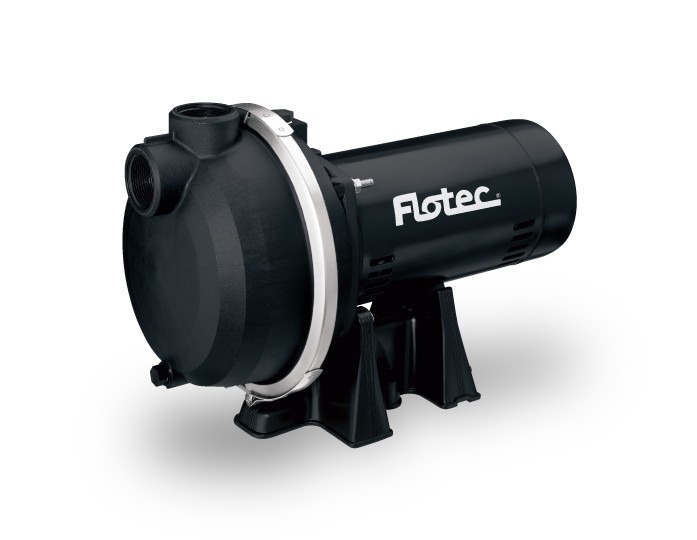

Thermoplastic Irrigation Pump 1 HP

The Flotec 1 HP High-Capacity Irrigation Pump has a dual-voltage motor for high output and can lift water from a depth of up to 20 ft.

SKU: FP5162 Categories: , Tag:

Description

Corrosion-resistant, self priming irrigation pumps are constructed of rugged, heavy-duty fiberglass-reinforced thermoplastic. Capable of operating large gardens. This pump has a durable, fiberglass-reinforced thermoplastic housing.



KEY FEATURES

  • Pumps up to 55 GPM or up to 40 psi
  • Dual-voltage (115/230) motor provides high output
  • Corrosion-resistant pump can lift water from a depth up to 20 ft.
  • Capable of handling up to 30 sprinkler heads
  • Fiberglass-reinforced thermoplastic pump housing is durable
  • Pump self primes after the housing is initially filled with water
  • Fully serviceable unit for maintenance and long life



BODY CONSTRUCTION:  Thermoplastic
HORSEPOWER:  1
MAXIMUM CAPACITY:  55 GPM
FLOW at 10′ LIFT and 30 PSI:  28 GPM
MAX LIFT:  25′
MAXIMUM PRESSURE:  42 psi
SUCTION PIPE SIZE:  1-1/2″ NPT
DISCHARGE PIPE SIZE:  1-1/2″ NPT
AMP DRAW (full load):  7.4 amps on 230v / 14.8 amps on 115v
VOLTAGE:  230v / 115v, 60 Hz
RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v
MAXIMUM WATER TEMPERATURE:  140 °F (60 °C)



WARRANTY
1 year limited factory warranty

Additional information

Weight 45 lbs
Dimensions 22 × 13 × 12 in
